Made to drawing · UK company
Commutators made to your drawing. For DC motor rewinds.
For the rewind shops that keep Britain's DC motors running: industrial, traction, lift, crane and mill armatures, including the large ones that cost the most and take the longest from the usual suppliers. Starter and alternator sizes too. Price on request within 2 working days, in pounds, with one UK VAT invoice.
Standard 4 to 5 weeks by sea · Urgent air freight available · One off or in batches
UK company, one UK VAT invoiceWhat we make
New commutators for armatures being rewound or repaired. No original part needed: a drawing, or the old part's dimensions and a couple of photos, is enough.

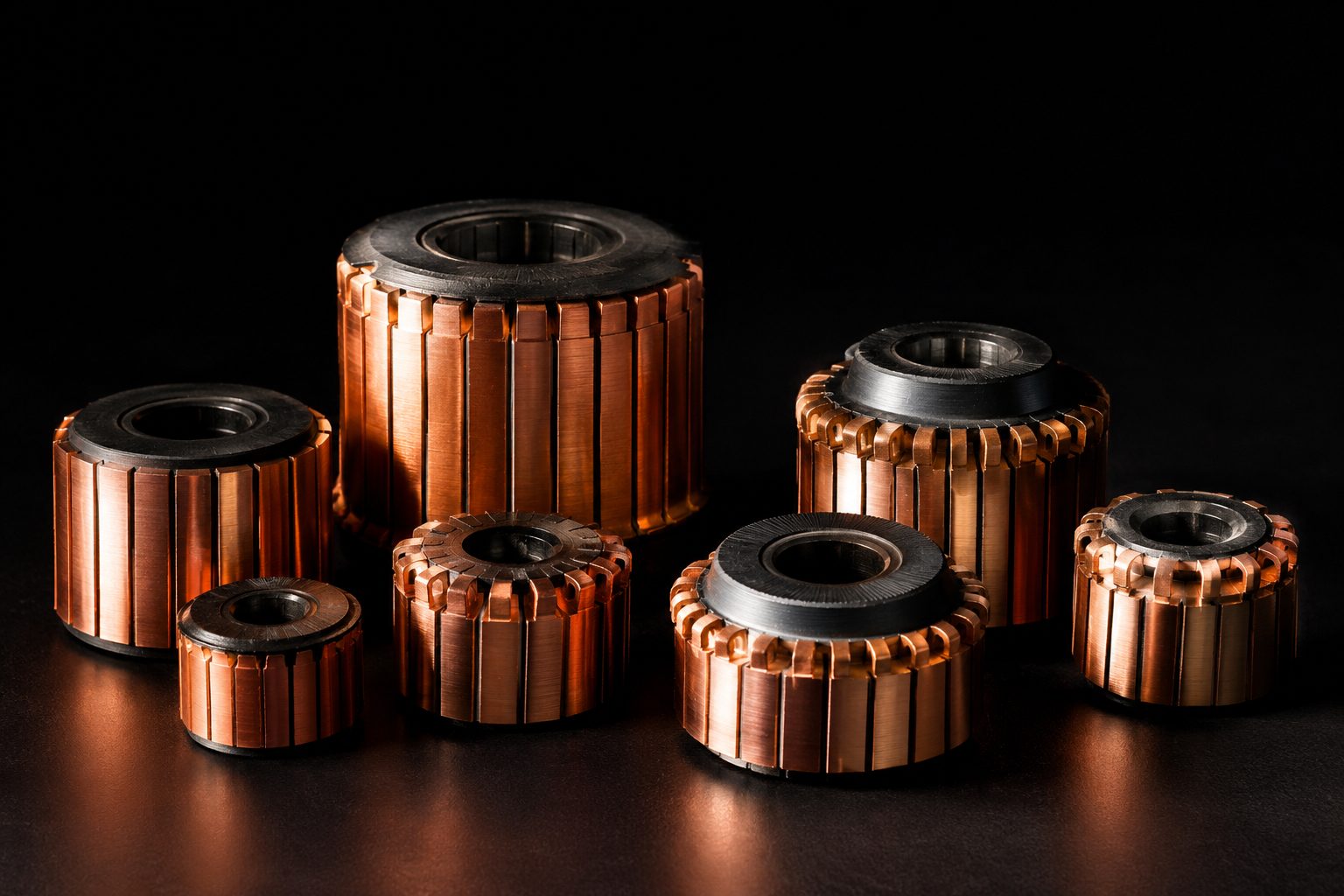

Industrial DC commutators
V-ring and moulded commutators for industrial, traction, lift, crane, mill and generator armatures. Made to your drawing or to our data sheet, one off or in batches.
How we work with rewind shopsLarge commutators
The big, slow jobs that cost the most and take the longest from the usual suppliers. Send the drawing or the old part's dimensions and we come back with a firm price, usually within 5 working days.
Large commutatorsStarter and alternator sizes
Twelve typical groove-type sizes from 21 to 69 segments for starter motor and alternator armatures, and anything else made to your measurements.
Standard starter sizesGet a quote
Tell us what you need. Firm price within 2 working days.
A drawing in any format, or a couple of photos of the old part, is enough. Price in pounds, standard and urgent lead times, and nothing is made until you say yes.
Drawing, data sheet or photos
Any format. If you only have the old part, measure it as it is and tell us it is worn. The full data sheet is there if you want to give every dimension.
Firm price and lead time within 2 working days
In pounds, ex and inc VAT, with the standard sea-freight lead time and the urgent air option side by side.
Made to drawing, one UK invoice
Made by specialist commutator factories, imported by us and delivered tracked with a UK VAT invoice.
The dimensions we work from
If you have them, the numbers on the diagram are the ones the factory needs. If you don't, a drawing or two photos of the old part does the job and we take it from there.
1 segments · 2 commutator diameter · 3 riser diameter · 4 diameter over V-ring · 5 bore · 6 total copper length · 7 brush surface length · 8/9 front and rear V-ring extension · 10 riser width · 11/12 slot width and depth. All in millimetres. Give what you have; a drawing or the old part's dimensions is enough.
Open the full data sheetFor rewind shops
A second source for the part you can't get quickly or cheaply.
Most UK rewind shops have one supplier for commutators, a long lead time and a price that has crept up for years. We give you a UK company to deal with, a firm price within 2 working days and a part made to your drawing.
What rewinders put up with today
- One supplier, long lead times, and a price that keeps rising
- Or import it yourself: euros, duty, a courier bill and no UK invoice
- Quotes that take days when the motor is already on the bench
- Nobody checks the drawing, so a wrong part turns up weeks later
Working with UK Commutators
- Made to your drawing or our data sheet by specialist commutator factories
- A firm price within 2 working days, with standard and urgent lead times
- Every drawing and dimension checked before anything is made
- One UK VAT invoice in pounds, nothing to pay at the door, 12-month warranty
Standard starter and alternator sizes
Twelve typical groove-type sizes from 21 to 69 segments, named by segment count the way repairers search. Price on request, made to order, or browse by application.
UK supplier
27 segment commutator
Price on request
UK supplier
30 segment commutator
Price on request
UK supplier
37 segment commutator, Bosch
Price on request
Can't see yours?
Your measurements and a photo, or the armature's OEM number. We'll match it and send a price within 2 working days.
How ordering works
Made to drawing, imported by us, delivered to your door
Send the drawing or the dimensions
The quote form takes the full data sheet and your files. For a starter size, pick it from the range or send the A to G measurements.
We confirm price and lead time within 2 working days
In pounds, delivery included, standard and urgent. If a dimension looks wrong we say so before anything is made.
Accept, pay the pro-forma, and we make it

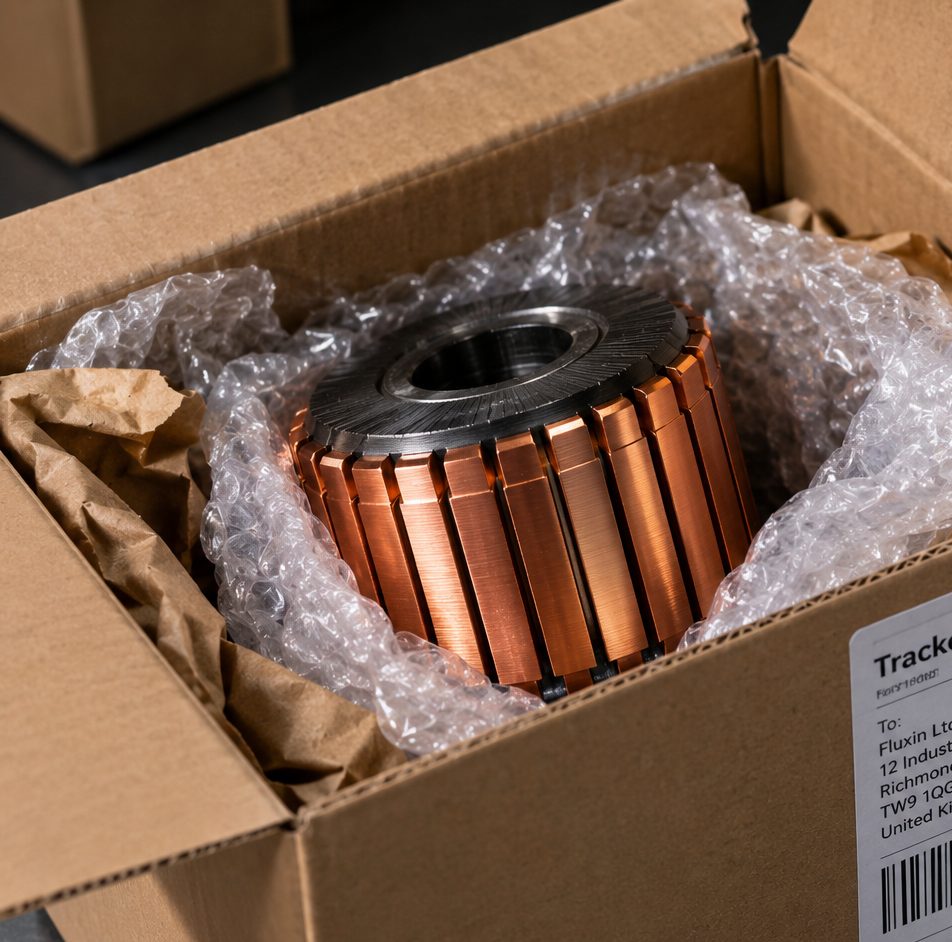

We handle the factory, the import and the paperwork. You get a tracked parcel and a VAT invoice you can file. 12-month warranty from the day it arrives.
£0
to pay at the door. Import VAT and duty are in the price you see.
Got a drawing, or just the old part? Send it over.
A drawing in any format, or photos of the old commutator with its dimensions, is enough for us to quote. Use the form or email it. We reply to every enquiry within one working day.
Monday to Friday, 8.30am to 5pm. Richmond, Surrey.
